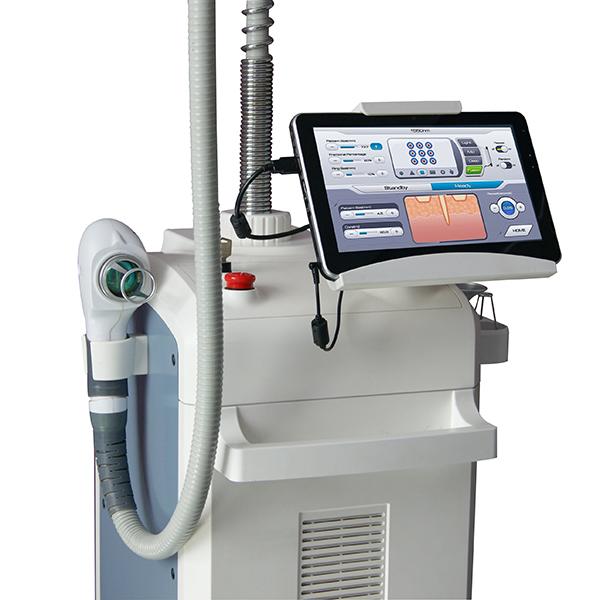

1550nm Laser for Skin Tightening, Wrinkle Removal and Scar Reduction L1550

  • 1550nm Laser for Skin Tightening, Wrinkle Removal and Scar Reduction L1550
  • 1550nm Laser for Skin Tightening, Wrinkle Removal and Scar Reduction L1550

Applications
Skin Tightening / Wrinkle Removal / Scars Reduction

Advantages
1. 3 different scanning tips
2. 4 fractional treatment modes: dermis and epidermis treatments are effective at the same time while in composite mode
3. 5 default graphics for precise scanning with up to 10 levels of scan coverage
4. Unique DIY graphic scanning functions for the best match with any target shape
5. An advanced safety protection system uses a real time online self-detection system
6. World’s top 1550 fiber laser, up to 30W energy output (20W and 10W are optional)
7. Highly precise scanning with a top quality scanning system
8. Up to 200mj single point energy with a 50±5um spot size.
9. Highly improved overall visual effect and stability with the use of injection process production

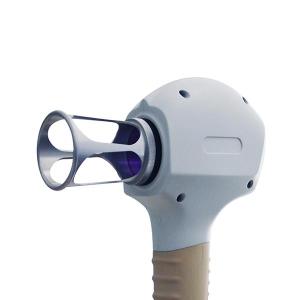

10. Convenient and easy to use handpiece is suitable for body mechanics

Technical specifications of the 1550nm Laser for Skin Tightening, Wrinkle Removal and Scar Reduction L1550
Item Specification
Laser type (CW) Fiber laser
Laser wavelength 1550nm
Laser output power 30W/20W (Optional)
Beam mode TEM00 (<1.1M2)
Treatment mode Light mode/Mid mode/Deep mode/Fusion mode
Scanning pattern Round/Square/Rectangle/Triangle/Torus/DIY
Pulse energy Up to 200mj
Focal spot diameter 50~150um
Pulse delay 0ms-100ms
Stripping ratio 5%~95%
Aiming light 635nm (≤5mw)
Scanning mode Ordered / Random
Rated input power AC230V±10%, 60/50Hz / AC110V±10%, 60Hz (Optional)
Gross weight 60kg
Size 500mm×700mm×1230mm
L1550 Light L1550 Middle L1550 Deep L1550 Combination
Treat skin surface and facilitate skin cell regeneration Treat the middle part of skin tissue to achieve more pronounced effect of hair removal; At the junction of dermis and epidermis, extra solidification tissue will be generated. Go deep into the dermis through epidermis, achieving prominent cutin removal. Surrounding skin tissue will be exfoliated and coagulation effect will be generated. Unique combination of treatment depth and intensity due to thermal damage and scan mode optimizes treatment effect on epidermis and dermis.
