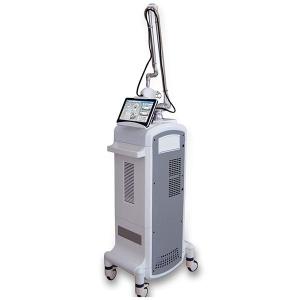

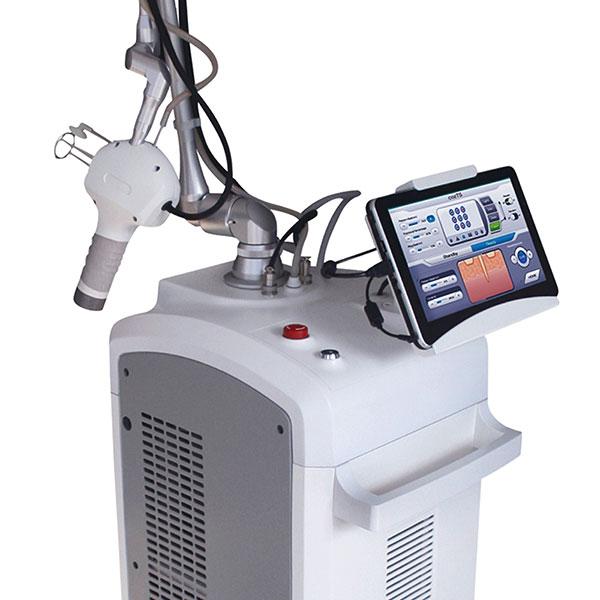

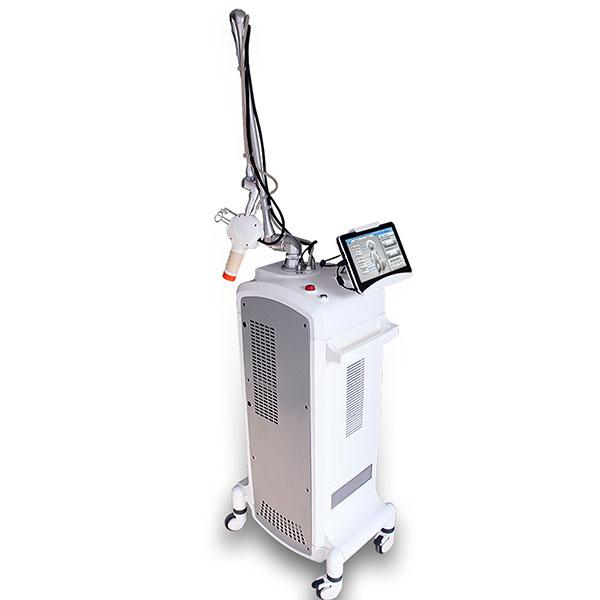

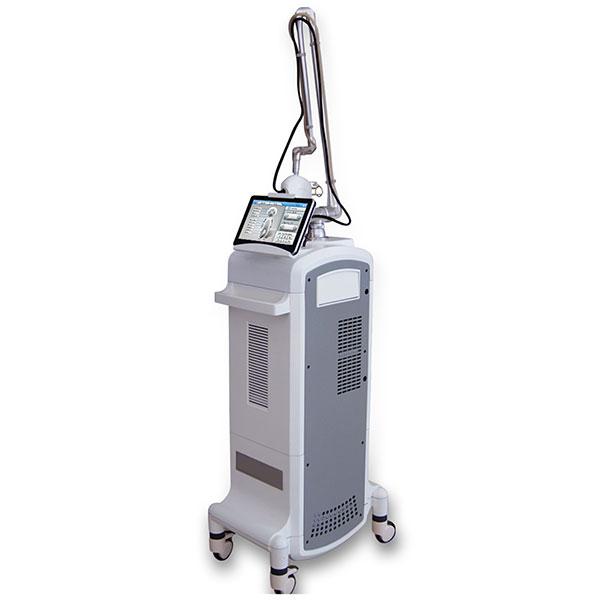

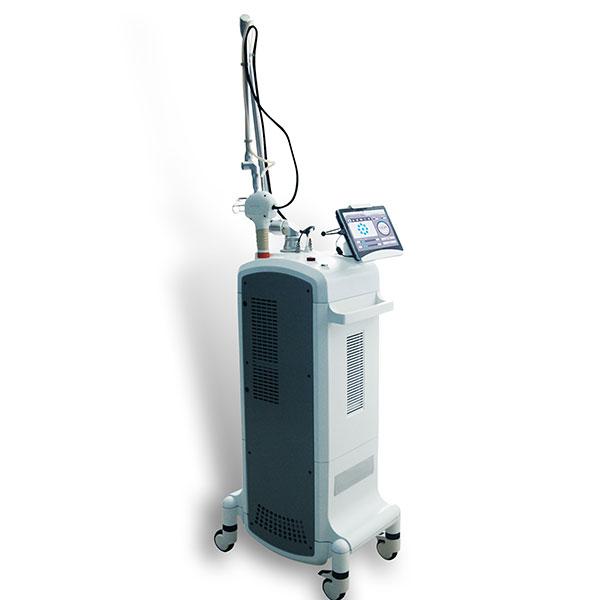

CO2-H CO2 Fractional Laser Skin Resurfacing System

  • CO2 Fractional Laser CO2-H
  • CO2 Fractional Laser CO2-H
  • CO2 Fractional Laser CO2-H
  • CO2 Fractional Laser CO2-H
  • CO2 Fractional Laser CO2-H
  • CO2 Fractional Laser CO2-H

Applications:
Skin Tightening / Wrinkle Removal / Scars Reduction

Technology Specifications:
Laser type (CW) American RF CO2 Laser
Laser power 30W
Wavelength 10.6um
Treatment modes Light Mode / Mid Mode / Deep Mode / Fusion Mode / Surgical
Scanning scope 5x5mm ~ 30x30mm
Scanning diagram Round / Square / Rectangle / Triangle / Torus / DIY
Pulse energy Up to 200mj
Focused spot diameter 60~185um (Based on treatment mode)
Stripping ratio 5%~95%
Aim light 635nm≤ 5mw
Scanning mode Regular / stochastic
Pulse delay 0ms~100ms
Rated input power AC230V±10%, 50Hz±1Hz/ AC110V±10%, 60Hz±1Hz (Optional)
Physical dimension 380X540X1230mm
Net weight 55Kg
Off-gas purification 0.3um≥ 99% above 0.3um particles filtering ratio

Advantages:
1. Upgraded treatment safety and comfort that has been improved with a pixel energy respective setup
2. Up to 5 fractional treatment modes, with the dermis and epidermis treatments both able to be simultaneously carried out in a composite mode.
3. Five default graphics for precise scanning with up to 10 levels of scan coverage
4. Unique DIY graphic scanning function to precisely match any target shape.
5. Advanced safety protection with real time online self-detection system
6. 30W world renowned RF Co2 laser (available in 20W or 10W for customers to choose from)
7. Highly precise scanning with top quality scanning system
8. Up to 200j single-point energy
9. Highly improved overall visual effect and stability, injection process production

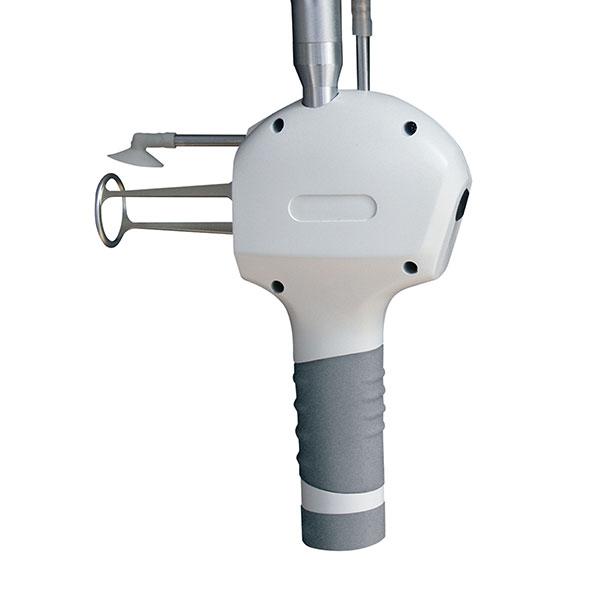

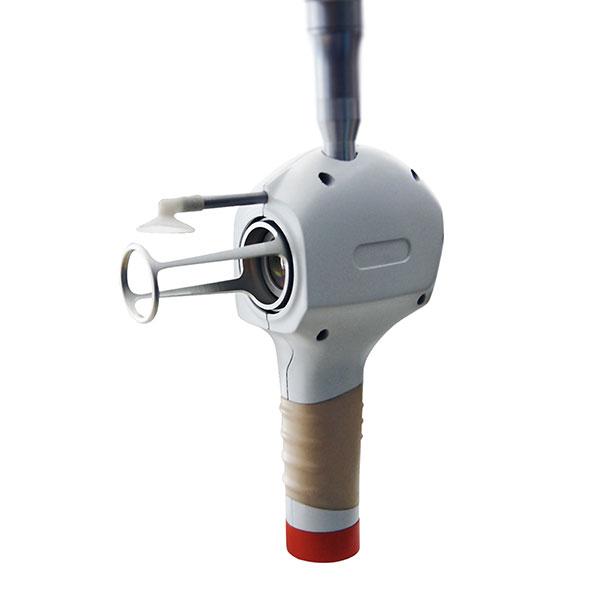

10. Convenient and easy- The handpiece is suitable for different body mechanics
11. 3 scanning tip types and 1 cutting tip
12. This equipment is outfitted with an odorless and cleaner initiative, patented, off-gas purification system
