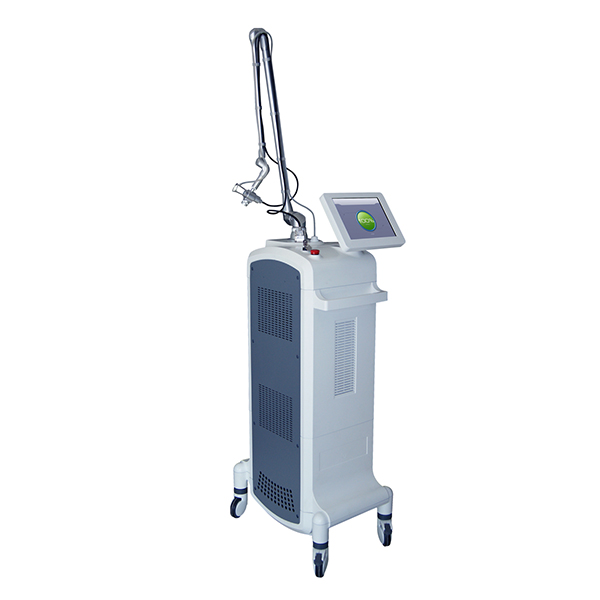

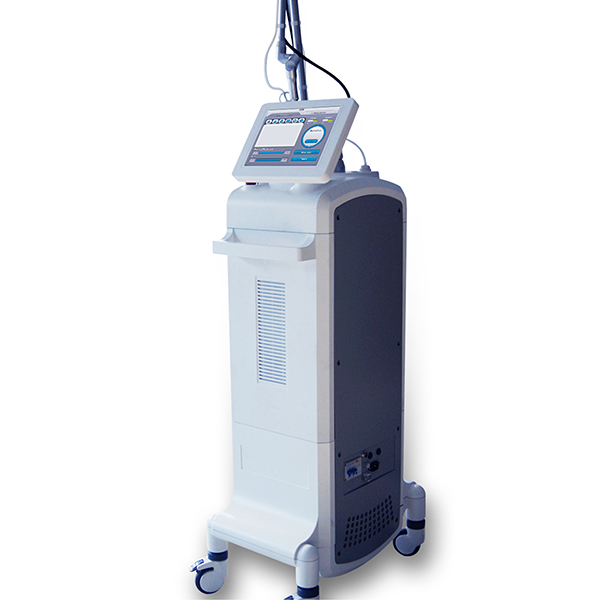

CO2 Fractional Laser CO2-M

  • CO2 Fractional Laser CO2-M
  • CO2 Fractional Laser CO2-M
  • CO2 Fractional Laser CO2-M
  • CO2 Fractional Laser CO2-M

Functions of CO2 Fractional Laser
Skin Tightening / Wrinkle Removal / Scars Reduction

Advantages of CO2 Fractional Laser
1. Treatment safety and comfort improved with pixel energy respective setup.
2. 5 default graphics for precise scanning with up to 10 levels of scan coverage.
3. Advanced safety protection with real time online self-detection system.
4. The CO2 fractional laser is capable of highly precise scanning with top quality scanning system.
5. Up to 200mj single-point energy.
6. Highly improved overall visual effect and stability adopted injection process production.
7. This skin rejuvenation equipment has multi-treatment modes ensured with 3 kinds of scanning systems.
8. High quality and muted dust removal device is installed for the beauty equipment (off-gas purification system for option).
9. The CO2 fractional laser uses high industrial grade components.
10. Multiple treatment modes are available, such as Pulse mode, Super-pulse mode.

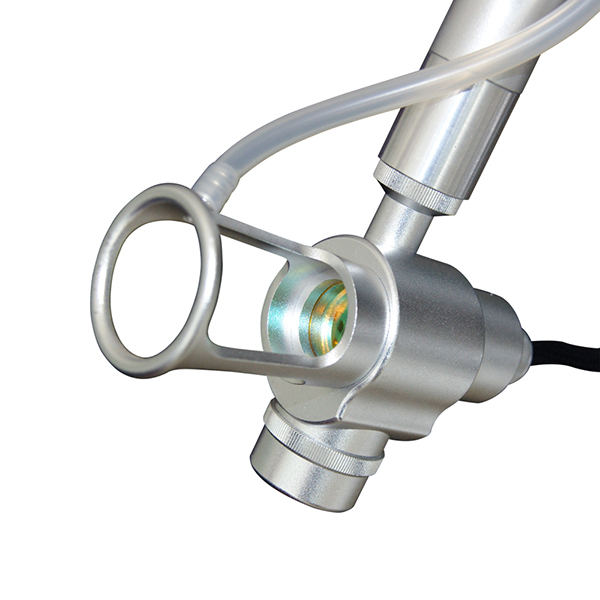

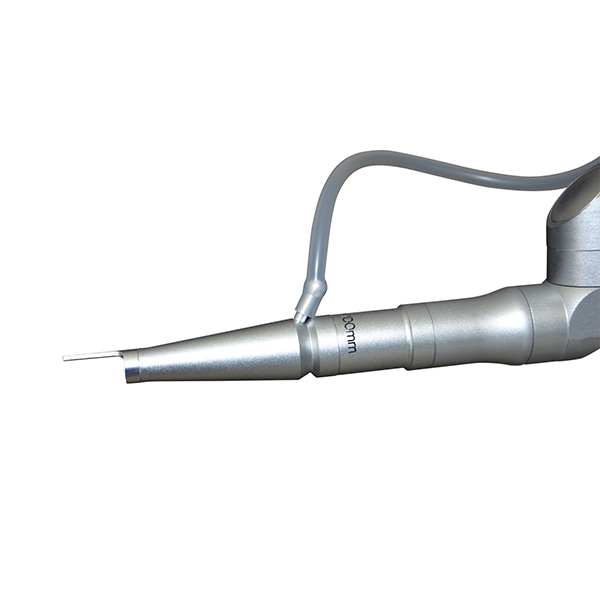

11. Two kinds of tips-one for scanning, one for cutting.

Specifications of CO2 Fractional Laser CO2-M
Screen 10.4″TFT color touch screen
Pulse width 0.1ms-6.6ms
Pulse number 1-200
Laser energy 1-200mJ
Laser wavelength 10640nm
Power of laser top value 30W
Treatment area Round: Φ5,Φ10,Φ15,Φ20
Triangle: 5×5,10×10,15×15,20×20
Square: 5×5,10×10,15×15,20×20
Rectangle: 5×10,5×15,5×10,5×20,10×15,10×20,15×20
Annulus: Φ5,Φ10,Φ15,Φ20
Prismatic: 5×5,10×10 (Unit: mm)
Graph Round, Triangle, Rectangle, Annulus, Prismatic
Graph output mode Continuous, single
Scanning mode Random off/Random on
Stripping ratio 5%-95% (Point density on unit area)
