A. Applications
1.Hair removal
2.Applicable for any hair color
3.Applicable for any skin type
4. Hair removal areas: lip hair, beards, chest hair, armpit hair, back hair, arm hair, leg hair, bikini line
B. Treatment Theory
The 808nm wavelength effectively penetrates deeply, and is absorbed by the target chromophore.
The adequate pulse duration, energy density, and epidermal cooling ensure an adequate thermal damage to the target tissue, without damaging the surrounding tissue in order to achieve effective hair removal.
C. Advantages
1). Safety: Gold Standard 808nm laser with reliable function, almost no skin scattering, no harm to the skin and sweat glands, no scar, no any side-effect;
2). Quick: Big spot size 12 X 12mm2, up to 10Hz repetition rate, Max output power 500W, high effect and quick treatment on big treatment area, reduce treatment time for original 1/5;
3). Efficiency: 808nm diode laser hair removal system uses the most advanced technology, ensuring the mechanism performance; clinical results is visible and safe;
4). Slight pain: Sapphire temperature cool down -5°C, can make momentary epidermal anesthesia, no any painless during treatment, increasing comfort during treatment;
5). Facilities: Intelligent 10.4'' touch display screen, easy to operate;
6). Permanent Hair Removal: Suitable to all types of hair color with high efficiency;

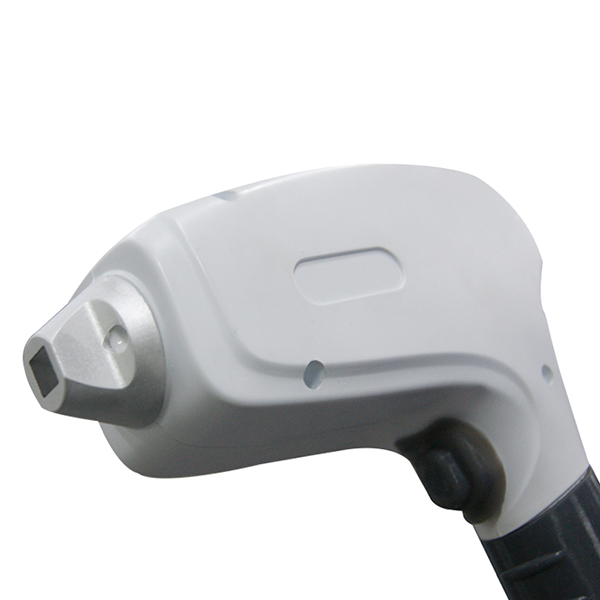

7). 808nm Diode Laser handle is optional;
8). Water cooling + Semiconductor Cooling ensure long working time;
9). More than 5,000,000 shots ensures longer lifetime than the other hair removal machine;
10). Continuous working, energy density reaches 120J/cm2 maximum;
11). No pigmentation limitation, used for any skin type;
12). Terminator hair removal system uses penetrate technology and skin absorbs less laser energy;
13). Self-Checking and Auto-protection system to ensure the stability;
14). Optional handle is installed with German laser module.
15). American FDA approved
LCD screen | 10.4 Inch TFT color touch screen |
Work mode | Pulse |
Pulse width | 2.9 - 348ms |
Real time on line | Real time on line |
Frequency | 1Hz,2Hz, 3Hz,10Hz |
Energy density | Max 120J/cm²(HR Mode), 25J/cm² (FHRMode) |
Laser wavelength | 808nm±10nm |
Laser power | Max 500W |

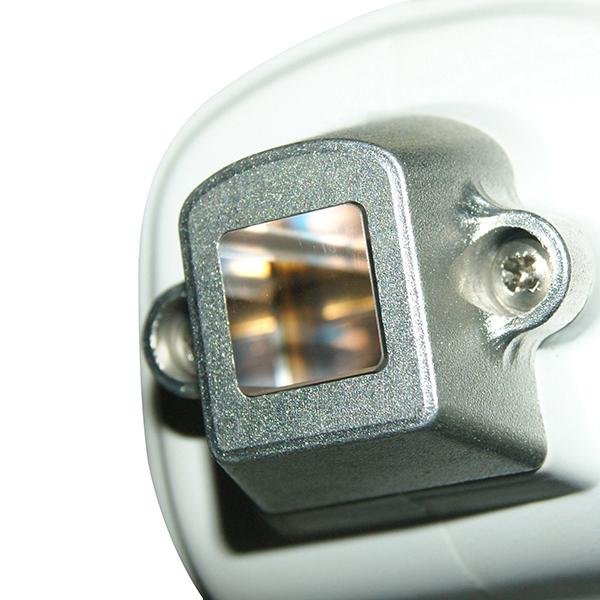

Tip | 12x12mm |
Rated input power | <2000W |
Power supply | AC110V,60Hz |
Temperature | 15~28℃ |
Humidity | 40%~70% |
Atmospheric pressure | 860hPa~1060hPa; |
Handpiece | One (500W) |
Net weight | 55kg |
Gross weight | 70kg |
Equipment size | 380mm×540mm×1200mm |
